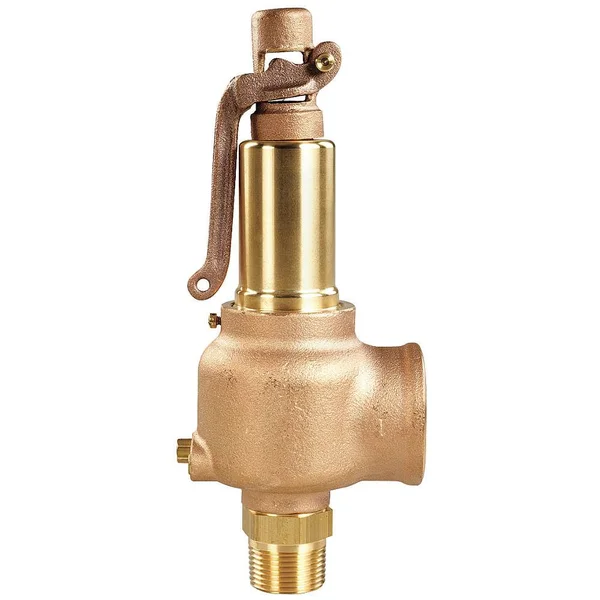

Aquatrol - 740EF-M1A-90 - Brass/Bronze Safety Relief Valve - MNPT Inlet Type, FNPT Outlet Type

Description

High-capacity, multipurpose valve features a dual lapped disc for improved seating tightness. Factory preset and sealed to prevent tampering. This listing is for each. Technical Specification Item Safety Relief Valve Body Material Brass/Bronze Inlet Type MNPT Outlet Type FNPT Inlet Size 1 in Outlet Size 1 1/4 in Factory Set Pressure 90 psi Disc Material Stainless Steel Overall Height 8 1/8 in Application Air, Gas Overall Length 8 1/8 in Seat Material Brass/Stainless Steel Spring Material Stainless Steel Temp. Range -320 Degrees to 406 Degrees F Test Lever Yes Standards ASME Section VIII / CRN This item is restricted for conveying or dispensing water for potable use (human consumption). High-capacity, multipurpose valve features a dual lapped disc for improved seating tightness. Technical Specification Item Safety Relief Valve Body Material Brass/Bronze Inlet Type MNPT Outlet Type FNPT Inlet Size 1 in Outlet Size 1 1/4 in Factory Set Pressure 90 psi Disc Material Stainless Steel Overall Height 8 1/8 in Application Air, Gas Overall. Range -320 Degrees to 406 Degrees F Test Lever Yes Standards ASME Section VIII / CRN This item is restricted for conveying or dispensing water for potable use (human consumption). Technical Specification Item Safety Relief Valve Body Material Brass/Bronze Inlet Type MNPT Outlet Type FNPT Inlet Size 1 in Outlet Size 1 1/4 in Factory Set Pressure 90 psi Disc Material Stainless Steel Overall Height 8 1/8 in Application. Not adjustable.

Key Features

• Range -320 Degrees to 406 Degrees F Test Lever Yes Standards ASME Section VIII / CRN This item is restricted for conveying or dispensing water for potable use (human consumption).
• This listing is for each.
• High-capacity, multipurpose valve features a dual lapped disc for improved seating tightness.
• Factory preset and sealed to prevent tampering.
• Technical Specification Item Safety Relief Valve Body Material Brass/Bronze Inlet Type MNPT Outlet Type FNPT Inlet Size 1 in Outlet Size 1 1/4 in Factory Set Pressure 90 psi Disc Material Stainless Steel Overall Height 8 1/8 in Application.
