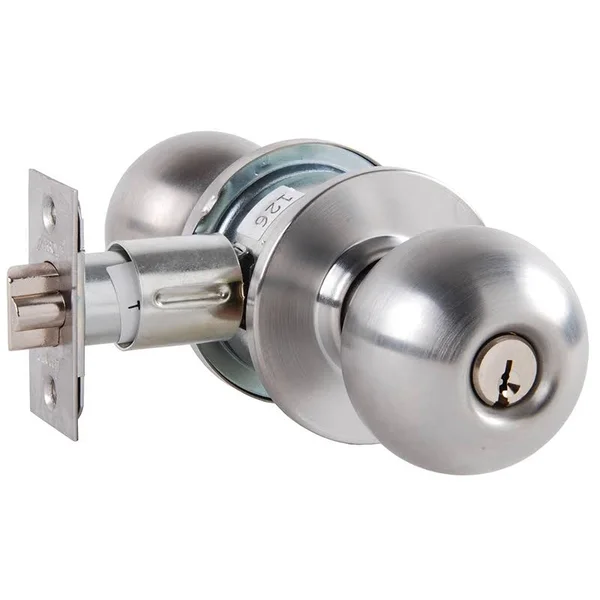

Arrow MK12TA 26D Cylindrical Lock

Description

Latch Front – Brass, bronze or stainless steel. Available in Schlage CS keyway and other competitive keyways. Latch housing is steel, with zinc dichromate finish for corrosion resistance. Conventional cylinders are also available in a variety of competitive manufacturer’s keyways. Door Thickness – 1-3/8" (34.92mm) to 1-3/4" (44.45mm). Supplied with two 5 pin brass keys for stock. Standard “T” strike measures 2-3/4" (69.85mm) x 1-1/8" (28.57mm). Cylinder, Standard – Solid brass 6 pin cylinder with Arrow “A” keyway, keyed to 5 pin for stock. Can be masterkeyed, grandmaster keyed and construction masterkeyed. The Arrow MK Series has a clear design and is a simple solution to accessibility requirements. Standard faceplate for 2-3/8” (60.32.mm) backset measures 2-1/4” (57.15mm) x 1” (25.40mm) with a flat front, for 2-3/4” (69.85mm) backset standard faceplate measures 2-1/4” (57.15mm) x 1-1/8” (28.57mm) with beveled front 1/8” (3.17mm) in 2” (50.8mm). Requires standard 2-1/8" (53.97mm) bore through door. The MK Series is available in several finishes and functions that make them ideal for commercial applications where heavy duty grade one hardware may not be necessary. Standard faceplate for 2-3/8” (60.32.mm) backset measures 2-1/4” (57.15mm) x 1” (25.40mm) with a flat front, for 2-3/4” (69.85mm) backset standard faceplate measures 2-1/4” (57.15mm) x 1-1/8” (28.57mm) with beveled front 1/8” (3.17mm) in. 2-3/4" (69.85mm), 3-3/4" (95.25mm) and 5" (127mm) available.

Key Features

• Standard “T” strike measures 2-3/4" (69.85mm) x 1-1/8" (28.57mm).
• Optional ANSI A115.1 strike measures 4-7/8" (123.82mm) x 1-1/4" (31.75mm).
• 2-3/4" (69.85mm), 3-3/4" (95.25mm) and 5" (127mm) available.
• Door Thickness – 1-3/8" (34.92mm) to 1-3/4" (44.45mm).
• Standard faceplate for 2-3/8” (60.32.mm) backset measures 2-1/4” (57.15mm) x 1” (25.40mm) with a flat front, for 2-3/4” (69.85mm) backset standard faceplate measures 2-1/4” (57.15mm) x 1-1/8” (28.57mm) with beveled front 1/8” (3.17mm) in.
• Requires standard 2-1/8" (53.97mm) bore through door.
