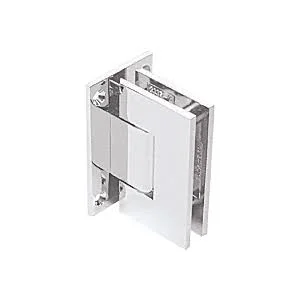

CRL GEN337SC Satin Chrome Geneva 337 Series Adjustable Wall Mount Full Back Plate HINGE, Silver

Description

Use only the template included with this hinge. Contact the DK Hardware Sales Shower Door Department. Adjustment to accommodate the desired angle (up to 90 degree) is done after the door is installed. (36 kg) with a maximum door width of 28" (711 mm). SPECIFICATIONS: Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass Special Features: Adjustable to any angle up to 90 degree without having to take door down. GEN13 Gasket Pack must be purchased separately for use with 5/16" (8 mm) thick tempered glass. For doors pulling outwards only (using a clear door jamb) you can adjust the hinge to close 5 degree inside the shower area thus having the door close snugly against the jamb. (54 kg) with a maximum door width of 32" (813 mm). By merely tightening the Allen screws your door will self-center to the desired closing position. Custom finishes are available on request. Once the door is hung simply loosen the Allen set screws and turn the door to the desired closed position. The door can swing 90 degree inward and 90 degree outward (adjusting angle from factory set position will reduce 90 degree swing in that direction). If hinges are to be used for other than their intended purpose approval must be obtained from the CRL Shower Door Technical Sales Department. Important Notes: CRL Shower Door Hinges are designed for residential or hotel shower use. NOTE: Door glass width may require alteration from standard clearance deductions when adjusting angles. Call for details.

Key Features

• GEN13 Gasket Pack must be purchased separately for use with 5/16" (8 mm) thick tempered glass.
• SPECIFICATIONS: Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass Special Features: Adjustable to any angle up to 90 degree without having to take door down.
• Using two hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 80 lbs.
• Using three hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 120 lbs.
• (36 kg) with a maximum door width of 28" (711 mm).
• (54 kg) with a maximum door width of 32" (813 mm).
