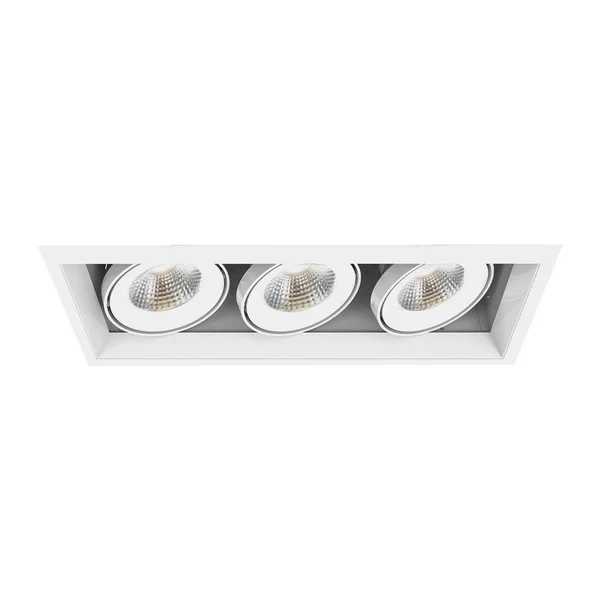

Eurofase 3-Light LED Multiple Recess TE163LED-40-2-22

Description

0-20 degree horizontal adjustment. NOTE: 1-Light and 4-Light Not Available in Platinum Finish. Class 2 dimmable constant current driver included. Dimmable with a TRIAC (low voltage electronic) dimmer, sold separately. Housing: 10.4 inch length x 6.13 inch width x 6.3 inch height. Driver box mates to fixture by 24 inch flexible BX cable and has one 1/2 inch and two 3/4 inch knockouts for through branch wiring. 50,000 hour average lamp life. Includes 2X15 watt, 120 volt LED module with 20 or 40 degree beam angle in 3000K, 3500K or 4000K color temperature, 90+CRI, 2X1290 lumens. Includes adjustable 2-light trim made of extruded aluminum available in a powder coat White trim with a Black reflector, or a powder coat Black or Platinum trim with a Black reflector. Non-IC designation requires that insulation be kept a minimum of 3 inches away from housing. Can be converted to a Non-IC new construction housing with 24052 mounting plate, IC new construction housing, or IC Airtight new construction housing, sold separately. The TE162LED 6 Inch Aperture 2-Light Non-IC Remodel Housing is constructed of 18 gauge powder coated steel and features adjustable mounting clips suitable for 1/2 inch and 5/8 inch drywall. Trim: 9.5 inch x 5.13 inch cutout.

Key Features

• Includes adjustable 2-light trim made of extruded aluminum available in a powder coat White trim with a Black reflector, or a powder coat Black or Platinum trim with a Black reflector.
• Driver box mates to fixture by 24 inch flexible BX cable and has one 1/2 inch and two 3/4 inch knockouts for through branch wiring.
• Non-IC designation requires that insulation be kept a minimum of 3 inches away from housing.
• Includes 2X15 watt, 120 volt LED module with 20 or 40 degree beam angle in 3000K, 3500K or 4000K color temperature, 90+CRI, 2X1290 lumens.
• Class 2 dimmable constant current driver included.
• The TE162LED 6 Inch Aperture 2-Light Non-IC Remodel Housing is constructed of 18 gauge powder coated steel and features adjustable mounting clips suitable for 1/2 inch and 5/8 inch drywall.
