Instek GDS-1072A-U 70 MHz Digital Storage Oscilloscope

Description

All applications of the GDS-1000B series can be applied to the educational field and the fundamental R&D units of the industrial sector.The GDS-1000B series features three bandwidth selections 100 MHz, 70 MHz, 50MHz and equips with analog. With respect to the horizontal time scale adjustment knob and trigger level adjustment knob, GW Instek provides a very thoughtful design the zero key function, which allows engineers to work more effectively.For mathematical analysis mode, 1Mpts FFT signal. The waveform update rate is 50,000wfms/s, which helps users to precisely observe the detailed waveform variation. Diversified trigger functions, X-Y mode analysis, and Go/NoGo function arm the GDS-1000B series oscilloscope with higher level measurement technologies. With respect to the horizontal time scale adjustment knob and trigger level adjustment knob, GW Instek provides a very thoughtful design the zero key function, which allows engineers to work more effectively.For mathematical analysis mode. Although, the GDS-1000B series is under the category of general purpose oscilloscope, the full functionalities within this simple-in-look oscilloscope, including parameter measurement, cursor indication, digital voltage meter, and data logging, surpasses the. The maximum sampling rate for each single channel is 1GSa/s, and the memory depth is 10Mpts per channel independently.

Key Features

• All applications of the GDS-1000B series can be applied to the educational field and the fundamental R&D units of the industrial sector.The GDS-1000B series features three bandwidth selections 100 MHz, 70 MHz, 50MHz and equips with analog.

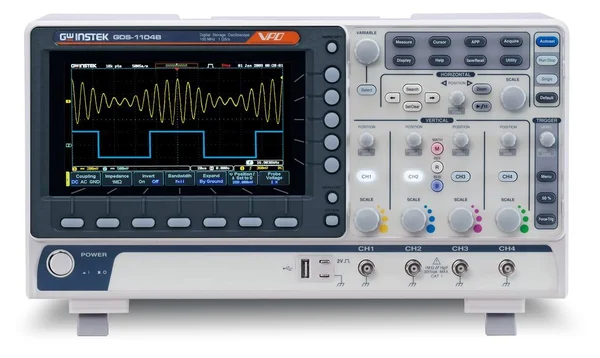

• Additionally, 7” WVGA color LCD display and the 256 color gradient display function together allow waveforms to be observed with the senses of transparency and gradation.
• The maximum sampling rate for each single channel is 1GSa/s, and the memory depth is 10Mpts per channel independently.
• With respect to the horizontal time scale adjustment knob and trigger level adjustment knob, GW Instek provides a very thoughtful design the zero key function, which allows engineers to work more effectively.For mathematical analysis mode.
• The GDS-1000B series oscilloscope also provides Open Wave connection software, which allows users to conduct waveform observation and data storage controlled by remote PC.
• The waveform update rate is 50,000wfms/s, which helps users to precisely observe the detailed waveform variation.
