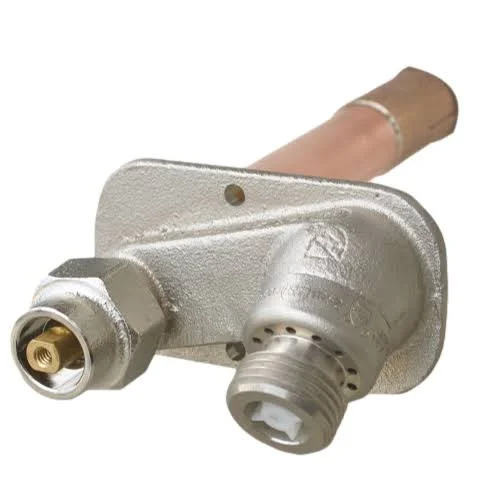

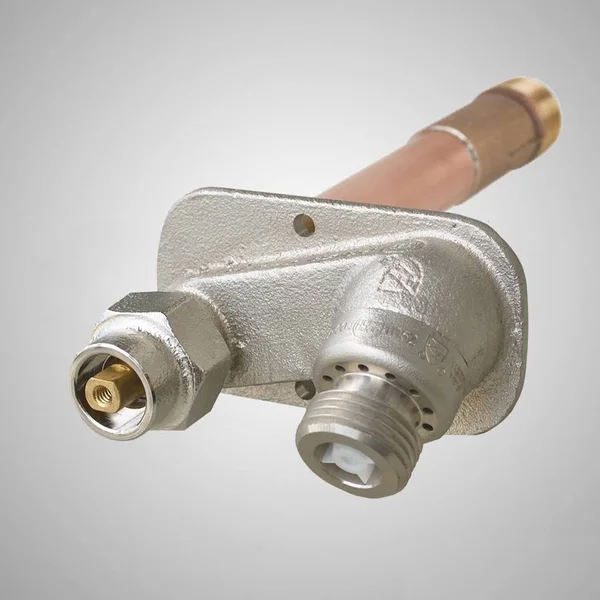

Prier C-534TCC 1-1/2x22 Loose Key Anti-Siphon Wall Hydrant 3/4x22 MPT x 1/2x22 FPT

Description

The vacuum breaker/backflow preventor provides protection against cross-connection of the potable water supply, while venting to eliminate any vacuum. No special installation tools required. To assure freeze protection, the hydrant will drain even with the hose attached and under pressure. ASSE 1052 and C-UPC approved Double check valve and anti-siphon vacuum breaker Drains automatically with hose attached Short valve stem cap for smaller profile in box Integral cast flange with built-in drainage pitch Solid brass body. The C-534 has all of the features of the historically proven PRIER C-134, with additional protection of a self-draining anti-siphon backflow check valve. ASSE 1052 and C-UPC approved Double check valve and anti-siphon vacuum breaker Drains automatically with hose attached Short valve stem cap for smaller profile in box Integral cast flange with built-in drainage pitch Solid brass body, valve stem cap, seat and. The PRIER C-534 provides a year round source of water to areas of structures that are subject to freezing temperatures. The C-534 has an extended vandal proof lockshield and comes with a loose key for operation. The hydrant valve is connected to the supply piping in the heated portion of the structure, eliminating the possibility of freezing.

Key Features

• The PRIER C-534 provides a year round source of water to areas of structures that are subject to freezing temperatures.
• The hydrant valve is connected to the supply piping in the heated portion of the structure, eliminating the possibility of freezing.
• To assure freeze protection, the hydrant will drain even with the hose attached and under pressure.
• ASSE 1052 and C-UPC approved Double check valve and anti-siphon vacuum breaker Drains automatically with hose attached Short valve stem cap for smaller profile in box Integral cast flange with built-in drainage pitch Solid brass body.
• The C-534 has all of the features of the historically proven PRIER C-134, with additional protection of a self-draining anti-siphon backflow check valve.
• The vacuum breaker/backflow preventor provides protection against cross-connection of the potable water supply, while venting to eliminate any vacuum.
