Powerwerx

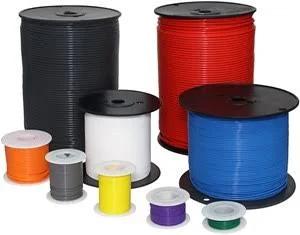

PTFE High Temperature Stranded Wire (Gauge: 14, Length: 500 ft., Color: White) Wire-TF-14-09-500
SKU: SKU-6BA3B75F49EC
List Price: C$1038.47
Price includes all taxes
In Stock — Ready to Dispatch
-
Shipping calculated at checkout · Delivery timing is shown in the shipping policy
-
30-Day Returns · Eligibility rules apply
-
Secure Checkout · SSL encrypted payment
Eligible items may be returned within 30 days. See the return policy for conditions.
Payment Method
Cash on Delivery — pay when your order is delivered.
Product Details
About this product
Description
Recommended for mission critical applications such as: aviation, commercial, racing. Conductor: Silver-plated stranded copper wire Insulation: Extruded PTFE Insulation, wall thickness.010 in (.25 mm) Temperature Range: -65癈 to +200癈 (-85癋 to +392癋) Compliances: MIL-W-16878E/4 Type E, MIL-STD-104, Passes UL VW-Flame Test and Birdcage Test, RoHS Compliant Features: thermal aging. For use where abrasion resistance is required. Voltage Rating: 600 VAC Splices: Due to the nature of the PTFE insulation, this product contains splices and is unlikely available in one continuous length. Wire for high temperature use having good flexibility. Recommended for critical applications. Resistance (DC at 20癈) Ohm/per Nom. Low power loss, ideal for high frequency applications. Reinforced with abrasion resistant mineral fillers. Conductor: Silver-plated stranded copper wire Insulation: Extruded PTFE Insulation, wall thickness.010 in (.25 mm) Temperature Range: -65癈 to +200癈 (-85癋 to +392癋) Compliances: MIL-W-16878E/4 Type E, MIL-STD-104, Passes UL VW-Flame Test. Gauge (AWG) Number of Strands Gauge of Strands (AWG) Conductor Diameter Finished Wire Diameter Max. KG/Km 10 37 26 .108 2.74 .127 3.23 .141 3.58 1.19 3.90 34.9 51.9 12 19 25 .084 2.13 .107 2.72 .121 3.07 1.81 5.94 22.6 33.6 14 19 27 .067 1.70 .088 2.24 .102 2.59 2.88 9.45 14.7 21.9 16 19 29 .053 1.35 .073 1.85 .087 2.21 4.53 14.8 9.77 14.5 18 19 30 .047. PTFE resists solvents, grease, ozone and other chemicals.
Key Features
- Wire for high temperature use having good flexibility.
- For use where abrasion resistance is required.
- Conductor: Silver-plated stranded copper wire Insulation: Extruded PTFE Insulation, wall thickness.010 in (.25 mm) Temperature Range: -65癈 to +200癈 (-85癋 to +392癋) Compliances: MIL-W-16878E/4 Type E, MIL-STD-104, Passes UL VW-Flame Test.
- Voltage Rating: 600 VAC Splices: Due to the nature of the PTFE insulation, this product contains splices and is unlikely available in one continuous length.
- Gauge (AWG) Number of Strands Gauge of Strands (AWG) Conductor Diameter Finished Wire Diameter Max.
- Weight Min Max Inch mm Inch mm Inch mm 1000-ft Km LBS./1000 ft.
