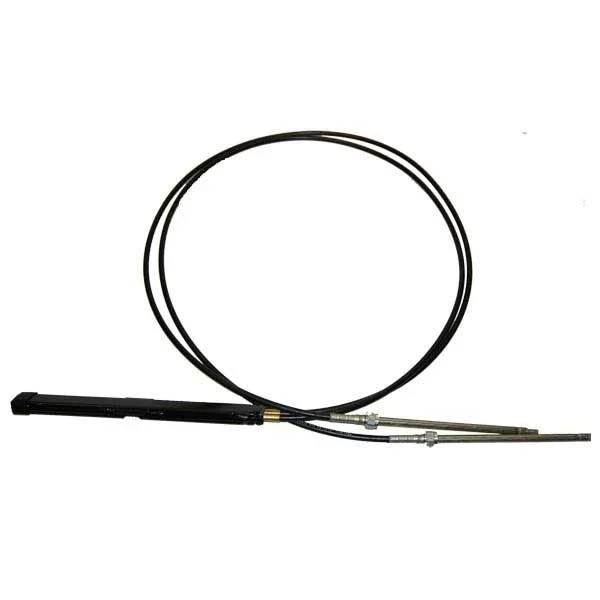

Rack & Pinion Dual Steering Cable - 25 ft. SSC13525

Description

Twin rack cables fit SH5210p, SH5230P, SH91610P, and SH91630P helms. This replacement Teleflex dual rack and pinion steering cable generally installs with no dash alteration and will provide years of performance for boats equipped with a non-power assisted outboard. Confirm length by laying a garden hose or similar object) along cable path and measure run from wheel to engine connection point. New Installation: Measure cable routing path from wheel center line to engine connection, as follows: A = Center line of wheel to gunwale (or deck, if routed downward), B = Dash to transom, C = Gunwale to centerline of cable connection at centered tiller. TYPICAL SINGLE STATION ROUTINGA single-cable, starboard drive push-pull mechanical cable system is shown in this diagram. Steering Cable SSC135Teleflex dual rack and pinion steering cables are specifically engineered for high-performance boaters wanting No Feedback technology. For Cable Installations through the Engine Tilt Tube: Add A, B & C + 6′′, then round up to the next foot. For Cables Mounted to Transom, Splashwell or Stringer: Add A, B & C, then subtract 6′′ and round up to the next foot. Order that length cable. If you removed the old cable, measure for the replacement cable as follows:For Rack Steering Cable Replacement, Measure Existing Cable as follows: Measure plastic cable jacket ("Y" dimension shown in above drawing) in inches, add 30′′, and. How to Measure Steering Cables "Measure Twice.

Key Features

• Twin rack cables fit SH5210p, SH5230P, SH91610P, and SH91630P helms.
• Order Once." Replacement of Existing Cable: If possible, find the part number stamped on the plastic jacket of the old cable.
• If you removed the old cable, measure for the replacement cable as follows:For Rack Steering Cable Replacement, Measure Existing Cable as follows: Measure plastic cable jacket ("Y" dimension shown in above drawing) in inches, add 30′′, and.
• New Installation: Measure cable routing path from wheel center line to engine connection, as follows: A = Center line of wheel to gunwale (or deck, if routed downward), B = Dash to transom, C = Gunwale to centerline of cable connection at.
• Confirm length by laying a garden hose or similar object) along cable path and measure run from wheel to engine connection point.
• This replacement Teleflex dual rack and pinion steering cable generally installs with no dash alteration and will provide years of performance for boats equipped with a non-power assisted outboard.
