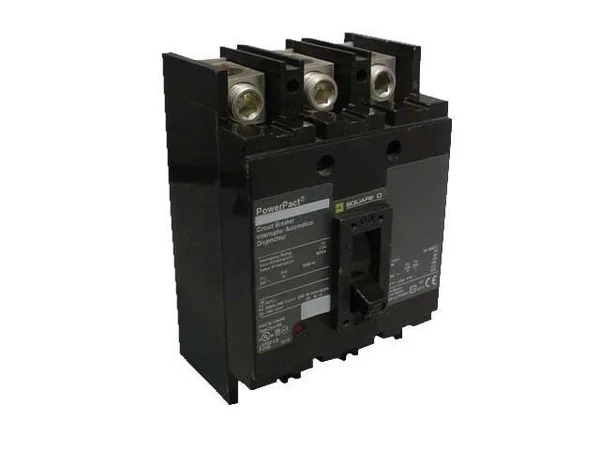

Square D QBL32200 3 Pole Circuit Breaker

Description

It measures 4.920 Inch x 3.920 Inch x 6.470 Inch. It provides protection from overload and short circuit. It can accommodate aluminum/copper lugs of size 4 AWG - 300 KCMIL at the line and load. Circuit breaker has I-line style plug-in type connection. It can accommodate aluminum/copper lugs of size 4 AWG - 300 KCMIL at the line and load. It can be used for power distribution, load side lug terminals and has thermal magnetic tripping method. It measures 4.920 Inch x 3.920 Inch x 6.470 Inch. Circuit breaker has I-line style plug-in type connection. It has a current rating of 200 Amps and a voltage rating of 240 VAC at 50/60 Hz. It provides protection from overload and short circuit. It can accommodate aluminum/copper lugs of size 4 AWG - 300 KCMIL at the line and load. The 3-Phase circuit breaker has an interrupt rating of 10 kilo-Amps and a trip rating of 1200 - 2400 Amps. Circuit breaker is UL listed/CSA approved/IEC rated and meets NOM, Fed. Specs W-C-375B/GEN standards. It has a current rating of 200 Amps and a voltage rating of 240 VAC at 50/60 Hz. Circuit breaker is UL listed/CSA approved/IEC rated and meets NOM, Fed. It provides protection from overload and short circuit. Specs W-C-375B/GEN standards. It can be used for power distribution, load side lug terminals and has thermal magnetic tripping method. The 3-Phase circuit breaker has an interrupt rating of 10 kilo-Amps and a trip rating of 1200 - 2400 Amps.

Key Features

• It can be used for power distribution, load side lug terminals and has thermal magnetic tripping method.
• It measures 4.920 Inch x 3.920 Inch x 6.470 Inch.
• It has a current rating of 200 Amps and a voltage rating of 240 VAC at 50/60 Hz.
• Circuit breaker has I-line style plug-in type connection.
• It can accommodate aluminum/copper lugs of size 4 AWG - 300 KCMIL at the line and load.
• It provides protection from overload and short circuit.
