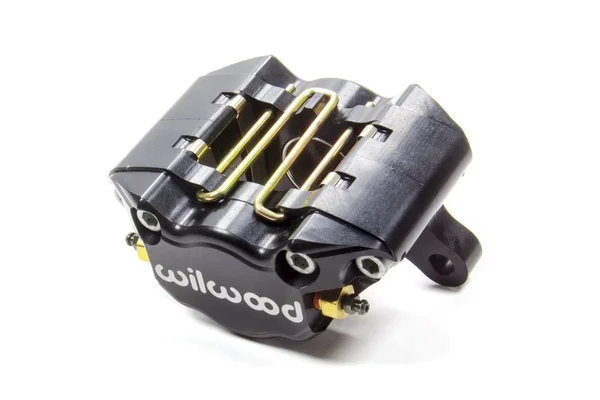

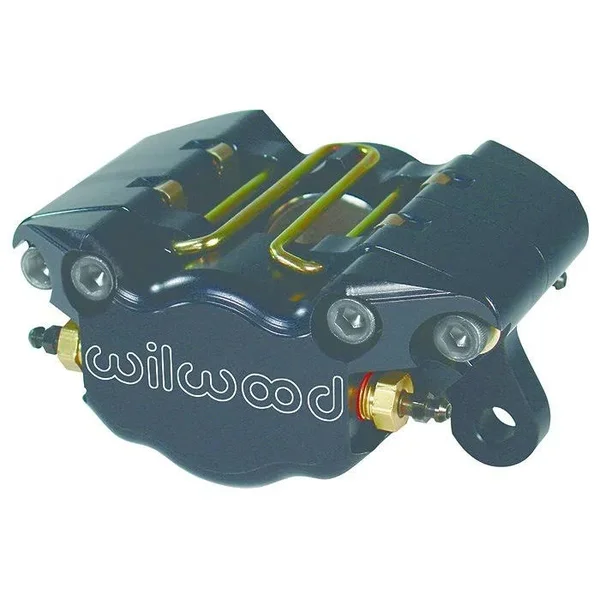

Wilwood 120-9690 Dynapro Billet Caliper

Description

The DynaPro Single (DPS) billet caliper is the newest generation of calipers available as an upgrade or replacement for applications previously using the Dynalite Single (DLS) series. Reductions in overall deflection, and the subsequent decreases in fluid volume displacement, translate to increased clamping efficiency with less pedal travel. The DPS uses heavy wall stainless steel pistons to resist corrosion and slow the heat transfer from the pads. The DPS is loaded with exclusive Wilwood performance enhancements. Calipers are fitted with replaceable stainless steel SRS bridge plates. Calipers are fully CNC machined from premium grade alloy billet. In addition to fast pad service without caliper removal, this feature provides substantially stronger retention over the single Quick-Clip pin and 7012 type pads used in the previous DLS models. The spring-loading action of the SRS plates eliminates pad rattle and dampens the vibration harmonics that contribute to squeal during engagement. SRS plates eliminate bridge wear caused by pad gouging. Calipers are fully CNC machined from grade alloy billet. The heavy wall sectional thickness improves pedal firmness and adds to the overall clamping efficiency by eliminating piston backside deflection. The calipers feature Quick-E-Clip pad retainers that support a 6812 type brake pad from the top. DPS calipers combine superior strength with performance enhancements to make these the best "Dyna" series calipers ever.

Key Features

• The DPS uses heavy wall stainless steel pistons to resist corrosion and slow the heat transfer from the pads.
• The package is completed with internal fluid passages and four corner bleed screws that allow mounting in any front, rear, left, or right side position.
• Calipers are fitted with replaceable stainless steel SRS bridge plates.
• In addition to fast pad service without caliper removal, this feature provides substantially stronger retention over the single Quick-Clip pin and 7012 type pads used in the previous DLS models.
• Calipers are fully CNC machined from grade alloy billet.

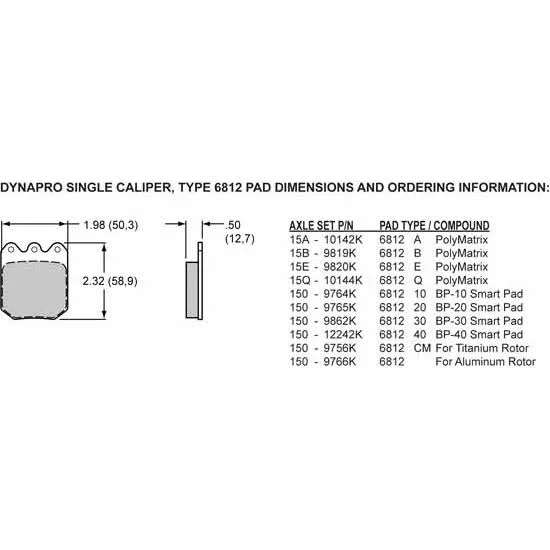

• The calipers feature Quick-E-Clip pad retainers that support a 6812 type brake pad from the top.
